Folder Device
DS Graphic enterprises, the troupe of enthusiastic believers and phenomenal manufacturers in the printing industry.
Dolphin 44:4+4 print tower
Dolphine 44: 30000cph
Dolphin44 can print 4colours on the both sides of one web or 2+2 colours on both sides of two webs or single colour on both sides of four webs.
Salient Features
- Berer to bearer plate & blanket cylinders.
- Motorized inking system.
- Brus dampening system.
- Helical cylinder gears & harden and ground gear.
- Circumferential movement & side movement at all four plate cylinders
- Plate cylinders with pin register.
- T.Bar type blanket lock up for easy clamping
- Slit type blanket lock up for easy plate cylinders
- Pneumatic control for ink fform dampening & impression on off.
- Lubrication system
- Cut off -508.533.546.560.578mm
- Running foot boards all around the machine.
- Plate punch register system.

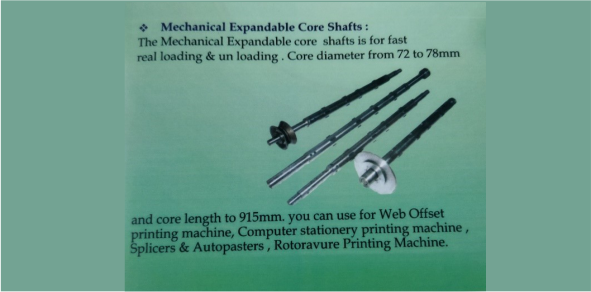

- Mechanical expandable core shafts.

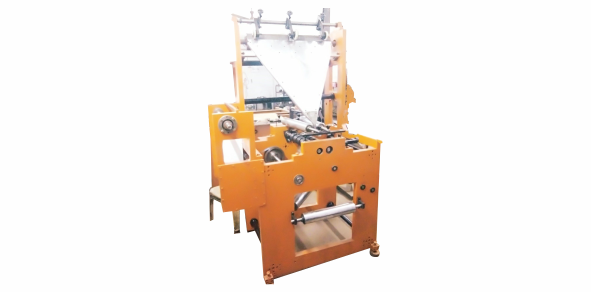

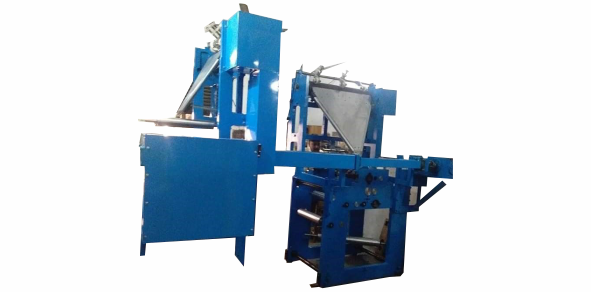

Dumming folder
- You can fold all type folding and 32 PAGE FOLDING on one web with jaw griper system
- you can double parallel folding .
- you can 16 page folding .
- you can 4 page & 8 page folding
- you can all type magazine , books ,diary ,dictionary,
Dumming folder : 30cph
- You can all type folding on 20000 cph to 30000cph
- Turn bar for paper direction change .
- You can all type folding for books , magazine , Diary ,Dictionary .
- You can fold 32pages on one web .
Web device
