Weboffset printing Machine
DS Graphic enterprises, the troupe of enthusiastic believers and phenomenal manufacturers in the printing industry.

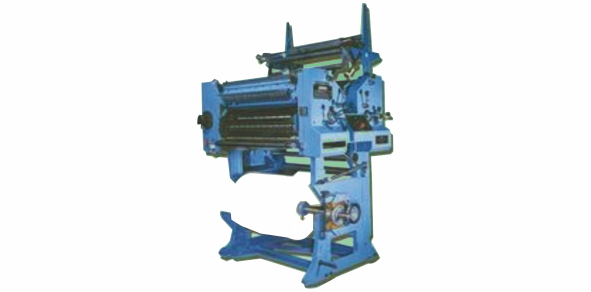

Dolphin 30: Single Colour Printing Unit
Description
- Key/Screw type swing down ink fountain.
- Dynamiclay balanced hard chromium plated solid plate & circumferential register.
- Manual side moment & ccircumferential register system from operative side on plate cylinder.
- Centralized oil pressure lubrication for drive gear.
- Brushes dampener system.
Option
- Heavy duty compensator on unit
- Pnumatic on of system
- Reel lifters(pnumetic control)
- Clutch on either side of unit
- Solid stainless steel plate & blanked cylinders
Dolphin Super 35: Single Colour Printing Unit
Salient Feature
- Solid stainless steel cylinder.
- Hardened BEAR TO BEAR conecting system .
- Dynamicaly balanced plate & blanket cylinder.
- Pneumatic On off system
- Heavy duty compensator
- Side Moment & circumferential register system from operative
side - All gears Lubricating by circulating oil system
- Brushes dampening system.
Optional Feature
- Suitable for high temperature application
- Flexible application
- Available in a wide range of thicknesses
- Suitable for use over stainless steel

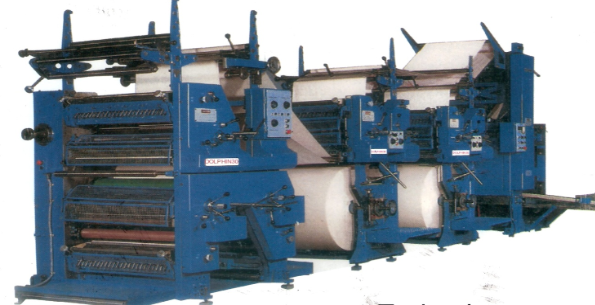

DOLPHIN 2X2 DOUBLE COLOUR (CIC) PRINTING UNIT
Description
Dolphin D22CIC Double colour printing unit is a Common Impressure Cylinder (CIC) design where the colou registration does not change during the entire roll unwind period . Both side double colour with perfect registration unit design with common impression Cylinders & with 10cylinders . you can print double colour both side & four colour both side with double unit. Where the registration does not change during the entire roll unwind period you can print 1+1,2+2,1+2,2+1, etc .
Salient Feature
- Bearer to bearer plate & blanket cylinders
- 2NO impression cylinders with bearer contact
- Motorized inking system
- Brush dampening system
- Helical cylinder
- Circumferential movement & side movement at all two plate cylinders .
- Plate cylinder with pin register.
- T. Bar type blanket lock up for easy clamping
- Slit type plate cylinders for easy plate clamping.
- Pneumatic control for ink form, dampening & impression on-off.
- Lubrication system
- Cut off 508,533,546,560,578mm
- Can be attached and synchronized with any make of same cutt-off
- Plate punch register system
- Pnumeantic roll lifting
- Running foot Boards all around the machine
- Mechanical expandable core shafts
DOLPHIN 2HI PRINTING UNIT
Description
Dolphin 2hi can print 2 colour on the both sides of one web & 4 colour on both side after attach one extra 2HI printing unit on the top base of this unit. design with in under reel stand , circumferential system in all plate cylinders , brushes dampening system , all on off control with pneumatics system
Dolphin 3C : 30000cph:
Description
Dolphin 3c : 30000cph: 3COLOUR offers extra option &capability of added colours with the existing single colour units . when coupled stack unit it offers 4 colour on one side with single colour on other side of web..
Salient Features
- Dynamicaly balanced hard chrome plated cylinders
- Side frames are of rifed andgrabed solid frame.
- Solid forged Steel Cylinders with hardened Bearers and hardchrom .
- Brush spray dempning system./li>
- Side moment adjustment
- Circumferential system from operator side on all plate cylinder.
- High capacity ink ducts with swing down ducts for easy & quick cleaning
- Heavy duty compensator.
- All gears are hardend & grounded ensuring High quility printing and longer life
- Perfector regestration
- All gears lubricating by circulating oil system
- Cut off-508,533,546,560,578mm
Optional Feature
- Running circumferential registers for plate cylinders.
- Register pin on plate cylinders.
- Web brake sense
- Web guide aligne
- Pneumatic control

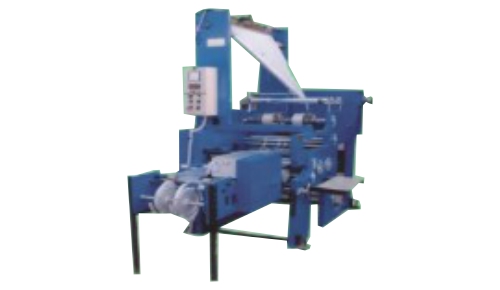

Dolphine 30 Heavy Duty Folder
Description
D S GRAPHIC ENTERPRISES is manufacturing heavy duty
2:1:1 jaw type folder. the mechanism consist of one cutting cylinder,one folding drum one jaw cylinder,on Double parllel cylinder.High speed reciprocation perfect Quarter page folder with creaser and parallel perforator and double parllel folding system with cross perfector.Perfect Quater Eight folder with 578,560 ,546 cut off only with 15000 to 25000 C.P.H dolphin folder are designed for qucik change over halt to quarter folder page or double. Parallel fold and Quarter eight pages.
Standard Specification
- Folding drum,cutting cylinder, jaw cylinder,DP cylinder are hard crom plated
- Movable jaw type picker pin system.
- half folder kicker after fiffty copies
- 2:1:1 jaw type harden & grond gears with oil lubrication system .
- Perfect Quarter folding. D P folding capacity from 15000 to 30000 copies per hours
- Perfect Quarter Eight folding capacity from 15000 to 25000 copies per hours
- Electronic counter ,Air former ,ballon former ,Folders can handle 4 to 6 webs for production of 16 to 24 pages of board sheet Newspaper ,For Double Parallel and Quarter fold 2 to 3 webs can be handle

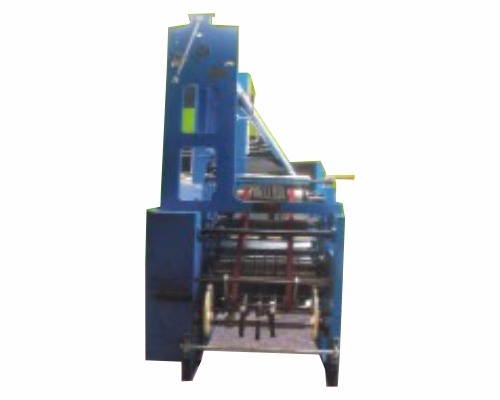

Half Folder-35000cph
- Speed :30,000 IPH
- Jaw type 1:2 folder
- R.T.F roller,cutting cylinder and Jaw cylinder dynamically balanced
- Double nipping
- Folder jam switch
- Signal lights on the folder
- Main driveshfts with thomas couppling at cylinder height ffor minimum backlash and smooth power transmission
- Eletronic copy counter
- Mechanical counter
- Kicker for 25 copies
- Centralised oil pressure lubrication for drive gears
- Sliter or perforator on RTF
- Fprward and reverse lap
